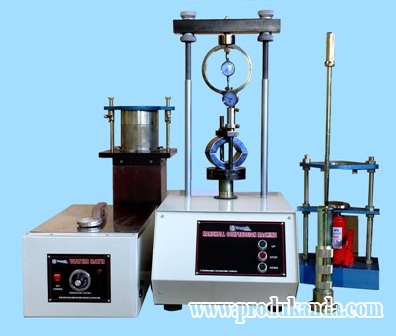

270-B Marshall Compression Machine

for measuring the resistance to plastic flow of cylinder speciment of bituminous paving
mixture loaded on the lateral surface by means of the marshall apparatus

Consist of :
271-B        Compression Machine                       Steel frame electric, 220 V-AC,                                   1 Set
                                                                                    ½ HP, 1 Ph, speed : 2" perminute.
275-B        Compaction Mold                                 Machine steel, plated, 4" dia. 3"                                 1 Set
                                                                                    height, with collar and base plate.
274-B        Stability Mold                                         Cast alumunium, split type 4" i.d., 1 set 4” wide     1 Set
276-B        Compaction Hammer                         Machine steel, plated 10 lbs Weight,                        1 Set
                   18” drop height
277-B        Compaction Pedestal                         Wooden base with steel platen.                                 1  Pc
                   Compaction Mold holder                    Machine Steel, quick clamping system                     1 Set
279-B        Extruder                                                 Steel frame , hydraulic system                                     1 Set
273-B        Flow Meter                                            Cast alumunium, clamping bolt,                                  1 Set
                   completed with dial indicator
                  0 x 0.01 mm.
278-B       Water Bath                                                 Stainless steel, water heater,                                    1 Set
                  220 V-AC thermostat 30-85 deg.C
115-G       Proving Ring                                                6000 lbs capacity.                                                        1 Set
                  Supplied completed with Calibration setificate by JNK - KAN
