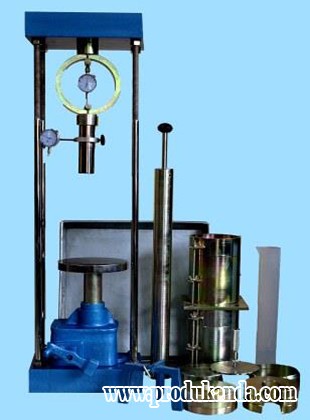

For determining the bearing ratio of Soil
| TYPE | Parts Name | Description | QTY | |||
| 451-S | Mechanical Loading Machine | Steel frame, hand operated, two | 1 | set | ||
| speeds, 10.000 lbs Capacity | ||||||
| 452-S | CBR Mold | Machine steel, 6" i.d, 7" height, | 3 | pcs | ||
| 2" height of collar. | ||||||
| 453-S | Spacer Dish | Machine steel, 5 15/16" dia, | 1 | pc | ||
| 2.416" height. | ||||||
| 454-S | Cutting Edge | Machine steel, sharp edge. | 1 | pc | ||
| 455-S | Circular Surcharge | Machine steel, 5 7/8" dia | 3 | pcs | ||
| Weight | 5 lbs weight. | |||||
| 456-S | Slotted Surcharge | Machine steel, 5 7/8" dia | 3 | pcs | ||
| Weight | 5 lbs weight. | |||||
| 444-S | Modified Proctor Hammer | Machine steel, plated, 18" drop | 1 | pc | ||
| height, 10 lbs weight. | ||||||
| 105-G | Filter Paper | 6" dia., 50 sheets/box. | 1 | box | ||
| 115-G | Proving Ring | 6.000 lbs capacity. | 1 | set | ||
| 102-G | Dial Indicator | Range 0.01" x 1". | 1 | pc | ||
| 459-S | Square Pan | Galvanized steel, 65 x 65 x 7.5 cm. | 1 | pc | ||
| 110-G | Thin Box | Alumunium, 60 gr capacity. | 12 | pcs | ||
| 119-G | Graduated Cylinder | Plastic, 1000 ml capacity. | 1 | pc | ||
| 153-G | Scoop | Cast alumunium. | 1 | pc | ||
| 154-G | Trowel | Pointed type. | 1 | pc | ||
| 447-S | Straight Edge | 300 mm length. | 1 | pc | ||
