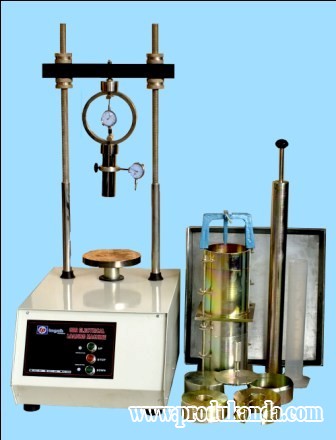

| (550-S) | LABORATORY CBR TEST (ELECTRIC) | |||
| ASTM D1883 AASHTO T193 | ||||
| For determing the bearing ratio of soil | ||||
| TYPE | Parts Name | Description | QTY | |
| 551-S | Electrical Loading Machine | Electric, 220 V-AC, 1/2 HP, 1 Phase, | 1 | set |
| 10.000 lbs capacity, speed 0.05"/min reversing switch | ||||
| 452-S | CBR Mold | Machine steel, 6" i.d, 7" height, 2" height of | 3 | pcs |
| collar. | ||||
| 453-S | Spacer Dish | Machine steel, 5 15/16" dia, 2.416" height. | 1 | pc |
| 454-S | Cutting Edge, | Machine steel, sharp edge. | 1 | pc |
| 455-S | Circular Surcharge | Machine steel, 5 7/8" dia 5 lbs weight. | 3 | pcs |
| 456-S | Slotted Surcharge | Machine steel, 5 7/8" dia 5 lbs weight. | 3 | pcs |
| 444-S | Modified Proctor Hammer | Machine steel, plated, 18" drop height, | 1 | pc |
| 10 lbs weight. | ||||
| 145-G | Filter Paper , | 6" dia., 100 sheets/box. | 1 | box |
| 115-G | Proving Ring , | 6.000 lbs capacity. | 1 | set |
| 102-G | Dial Indicator, | Range 0.01" x 1". | 1 | pc |
| 459-S | Square Pan , | Galvanized steel, 65 x 65 x 7.5 cm. | 1 | pc |
| 110-G | Thin Box , | Alumunium, 60 gr capacity. | 12 | pcs |
| 119-G | Graduated Cylinder, | Plastic, 1000 ml capacity. | 1 | pc |
| 153-G | Scoop, | Cast alumunium. | 1 | pc |
| 154-G | Trowel, | Pointed type. | 1 | pc |
| 447-S | Straight Edge , | 300 mm length. | 1 | pc |
| Dimension (l x w x h) | : 110 x 70 x 120 cm | |||
| Gross Weight | : 200 kg | |||
