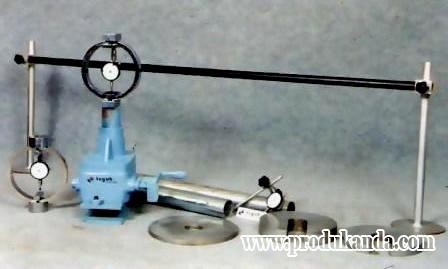

For determining CBR Value on place
TYPE | PARTS NAME | DESCRIPTION | QTY | |
381-S | Mechanical Jack | Consist of : | 1 | pc |
Cast alumunium housing, 5 tons cap. | ||||
Swivel head, cast aluminium | 1 | pc | ||
382-S | Field Penetration | Machine steel, plated, ajustable height. | 1 | pc |
Piston | Consist of : | |||
Penetration Piston | ||||
Machine steel plated,3 sq in cross section area | ||||
383-S | Extention set | Machine steel plated ; (5, 10, 20, 30, 60) cm | 1 | Set |
Provided with connecting adaptor | ||||
387-S | Reference beam | Steel pipe 150 cm | 1 | Set |
384-S | Circular Surcharge Weight | Machine steel platen 10″ dia, 10 lbs weight | 1 | Pc |
385-S | Slotted Surcharge Weight | Machine steel plated,8″dia, 10 lbs weight | 1 | Pc |
386-S | Slotted Surcharge Weight | Machine steel plated, 8,5 ” dia, 20 Lbs weight | 1 | Pc |
200-G | Proving Ring | 2.000 Lbs Capacity | 1 | Set |
1000-G | Proving Ring | 10.000 Lbs Capacity | 1 | Set |
101-G | Dial Indicator | Range 30 mm x 0,01 mm | 1 | Pc |
107-G | Dial Holder | Magnetic | 1 | Pc |
