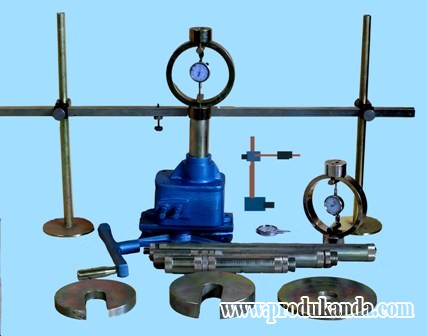

| (380-S) | FIELD CBR TEST SET | ASTM D-4429 | |||||
| For determining CBR Value on place | |||||||
| TYPE | Parts Name | Description | QTY | ||||
| 381-S | Mechanical Jack 5 Tons capacity | Cast alumunium housing, hand opp., | 1 | pc | |||
| 2 speed, Swivel head, cast aluminium | |||||||
| 382-S | Field Penetration | Machine steel, plated, ajustable height. | 1 | pc | |||
| Piston | Penetration Piston | ||||||
| Machine steel plated, 3 sq in cross section area | |||||||
| 383-S | Extention set | Machine steel plated ; (5, 10, 20, 30, 60) cm, | 1 | Set | |||
| Provided with connecting adaptor | |||||||
| 387-S | Reference beam | Steel pipe 150 cm | 1 | Set | |||
| 384-S | Circular Surcharge Weight | Machine steel platen 10" dia, 10 lbs weight | 1 | Pc | |||
| 385-S | Slotted Surcharge Weight | Machine steel plated, 8"dia, 10 lbs weight | 1 | Pc | |||
| 386-S | Slotted Surcharge Weight | Machine steel plated, 8.5 " dia, 20 Lbs weight | 1 | Pc | |||
| 200-G | Proving Ring | 2.000 Lbs Capacity | 1 | Set | |||
| 1000-G | Proving Ring | 10.000 Lbs Capacity | 1 | Set | |||
| 102-G | Dial Indicator | Range 30 mm x 0,01 mm | 1 | Pc | |||
| 104-G | Dial Holder | Magnetic | 1 | Pc | |||
| Dimension (l x w x h) | : 140 x 35 x 35 cm | ||||||
| Gross Weight | : 75 kg | ||||||
