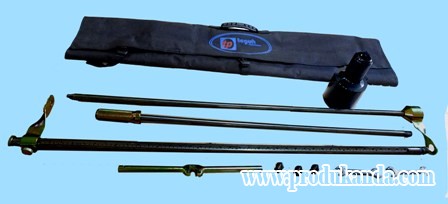

| (335-S) | DYNAMIC CONE PENETROMETER (DCP) | ||||||||
| For rapid determination of field CBR value (Rapid quality Control) | |||||||||
| TYPE | Parts Name | Description | QTY | ||||||
| 336-S | Handle | Machined Steel Painted | 1 | pc | |||||
| 337-S | Hammer | Machined steel, Painted, 8 kg weight | 1 | Pc | |||||
| 338-S | Guide Rod | Stainless steel, 16 mm dia drop | 1 | Pc | |||||
| height 575 mm. | |||||||||
| 339-S | Anvil | Machined steel, welded painted. | 1 | Pc | |||||
| 340-S | Penetration Rod | Stainless steel, 16 mm dia, 107 length | 1 | Pc | |||||
| 343-S | Cone | Hardened tool steel cone tip, 60 deg. | 3 | Pcs | |||||
| angle, 20 mm dia., stainless steel | |||||||||
| adaptor. | |||||||||
| 341-S | Penetration Scale | Stainless steel, 16 mm dia, | 1 | Pc | |||||
| 100 cm scale | |||||||||
| 342-S | Carrying Bag | Water proof cloth. | 1 | Pc | |||||
| 344-S | Open End Wrench | 2 | Pcs | ||||||
| Dimension (l x w x h) | : 115 x 20 x 20 cm | ||||||||
| Gross Weight | : 15 kg | ||||||||
| Alat ini digunakan untuk menentukan nilai CBR sub base atau base course suatu perkerasan secara cepat dan praktis. | |||||||||
