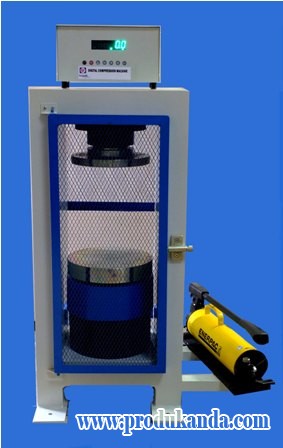

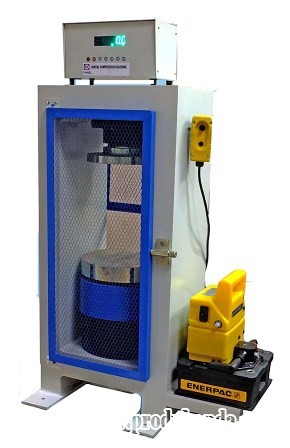

| (200-CDI) | DIGITAL INDICATOR CONCRETE | ASTM C-39 | |||||||
| COMPRESSION MACHINE | |||||||||
| Is designed to test CUBE and CYLINDERS Concrete, Motorized and Digital Indicator | |||||||||
| Avaliable in 2000 kN and 1500 kN capacities, Calibrated by JNK - KAN | |||||||||
| Specification : | |||||||||
| Capacity | : 2000 kN TYPE CDI - 200 | ||||||||
| 1500 kN TYPE CDI - 150 | |||||||||
| Power | : 1000 watt, 220 V-AC, 1 Phase, 50 Hz | ||||||||
| Frame | : Heavy duty welded steel coloumn and plate | ||||||||
| Readout | : 6 digit, digital display | ||||||||
| Accessories | : Dual power AC back up Battery, calibrated. | ||||||||
| Reading | : kN and Kg | ||||||||
| Sample | : Cube 15 cm dia, x 30 cm height | ||||||||
| Cube 15 x 15 x 15 cm | |||||||||
| Pump | : Single acting, 10000 psi pressure capacity | ||||||||
| 13 Liter Oil Cap, Variable Speed | |||||||||
| Rod | : Max travel 10 cm | ||||||||
| Hoses | : Heavy duty rubber hoses | ||||||||
| Dimension (l x w x h) | : 700 x 320 x 1400 cm | ||||||||
| Gross Weight | : 500 kg | ||||||||
