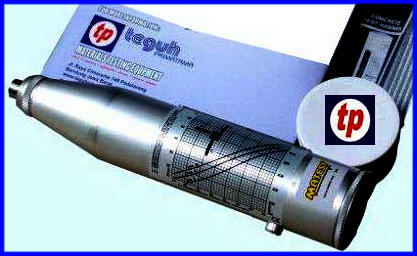

| 400-C | CONCRETE TEST HAMMER TYPE “N” | ASTM C-805 | |||||||
| For rapid quality control of concrete works , with built in Pointer scale and graph for various angle. | |||||||||
| Type “ N “ range 10 to 70 N/mm2 (100 to 700 kgf/cm2) | |||||||||
| Impact Energy 0,225 mkg (2,207 joule) | |||||||||
| Included certificate calibration by KAN | |||||||||
| For non destructive strength testing of concrete and structural components . | |||||||||
| In operation, the hammer hits the concrete at a defined energy. | |||||||||
| Its rebound is dependent on the hardness of the concrete. | |||||||||
| Through the use of the included conversion table , | |||||||||
| the rebound value can be converted to compressive strength. | |||||||||
| The standard (Type N) hammers that displays rebound values on a mechanical | |||||||||
| sliding scale. For testing thin walled structural components with a thickness | |||||||||
| of less than 10 cm or rock cores. All models include rubbing stone, | |||||||||
| carrying case and instruction booklet with conversion charts. | |||||||||
| Accessories | : Distance Piece for Cube Sample Test | ||||||||
| Dimension (l x w x h) | : 15 x 15 x 40 cm | ||||||||
| Gross Weight | : 2 kg | ||||||||
