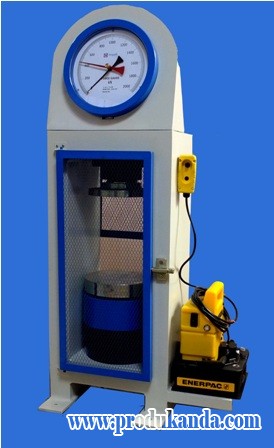

| (201-CM) | ELECTRIC CONCRETE COMPRESSION | ASTM C-39 | ||||||
| MACHINE (ENERPAC PUMP) | ||||||||
| For determining Compressive strength of concrete cube 15 x 15 x 15 cm | ||||||||
| Or concrete Cylinder 15 cm dia x 30 cm height | ||||||||
| Specification : | ||||||||
| Capacity | : | 1500 kN TYPE 151-CM | ||||||
| 2000 kN TYPE 201-CM | ||||||||
| 3000 kN TYPE 301-CM | ||||||||
| Power | : | 1 HP, 220 V-AC, 1 Phase, 50 Hz | ||||||
| Sample | : | Cube 15 cm dia, x 30 cm height | ||||||
| Cube 15 x 15 x 15 cm | ||||||||
| Pump | : | Enerpac- USA | ||||||
| Cylinder | : | Max pressure 7000 psi | ||||||
| Rod | : | Max travel 10 cm | ||||||
| Hoses | : | Heavy duty rubber hoses | ||||||
| Safety | : | Protective door | ||||||
| Gauge | : | 30 cm dia. 3.7 kN, 5 kN and10 kN | ||||||
| increments | ||||||||
| Calibration | : | Included by JNK - KAN | ||||||
| Dimension (l x w x h) | : 700 x 320 x 1400 cm | |||||||
