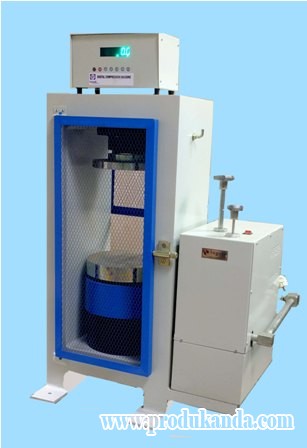

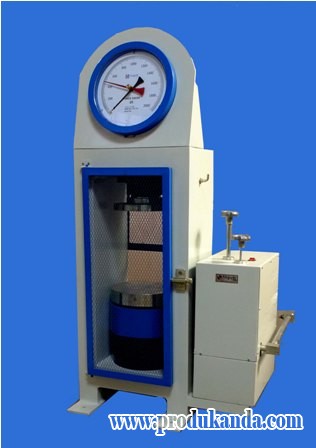

| (200-CM) | ELECTRIC CONCRETE COMPRESSION | ASTM C-39 | ||||||
| MACHINE | ||||||||
| For determining Compressive strength of concrete cube 15 x 15 x 15 cm | ||||||||
| Or concrete Cylinder 15 cm dia x 30 cm height | ||||||||
| Specification : | ||||||||
| Capacity | : 1500 kN TYPE 150-CM | |||||||
| 2000 kN TYPE 200-CM | ||||||||
| 3000 kN TYPE 300-CM | ||||||||
| Power | : 1 HP, 220 V-AC, 1 Phase, 50 Hz | |||||||
| Sample | : Cube 15 cm dia, x 30 cm height | |||||||
| Cube 15 x 15 x 15 cm | ||||||||
| Pump | : Single acting, 7000 psi pressure capacity | |||||||
| 13 Liter Oil Cap, Variable Speed | ||||||||
| Cylinder | : Max pressure 7000 psi | |||||||
| Rod | : Max travel 10 cm | |||||||
| Hoses | : Heavy duty rubber hoses | |||||||
| Safety | : Protective door | |||||||
| Gauge | : 30 cm dia. 3.7 kN, 5 kN and10 kN increments | |||||||
| Calibration | : Included by JNK - KAN | |||||||
| Dimension (l x w x h) | : 700 x 320 x 1400 cm | |||||||
| Gross Weight | : 500 kg | |||||||
