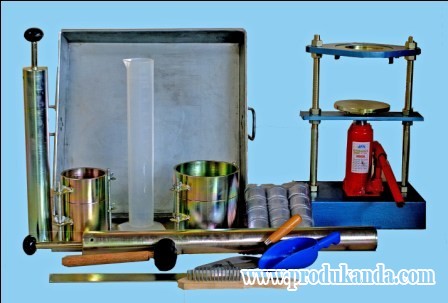

| (440-S) | COMPACTION TEST SET | ||||||
| ASTMD698/D1557 AASHTO T99/T280 | |||||||
| for determining moisture density relationship | |||||||
| TYPE | Parts Name | Description | QTY | ||||
| 441-S | Standard Proctor Mold | Machine steel, plated, 4" i.d., 4.584” height , 2” collar height. | 1 | Pc | |||
| 442-S | Modified Proctor Mold | Machine steel, plated, 6" i.d., 4.584” height, 2” collar height. | 1 | Pc | |||
| 443-S | Standard Proctor Hammer | Machine steel, plated, 12" drop height, 5,5 lbs weight. | 1 | Pc | |||
| 444-S | Modified Proctor Hammer | Machine steel, plated, 18" drop height, 10 lbs weight. | 1 | Pc | |||
| 445-S | Extruder, | Steel frame, hydraulic jack. | 1 | Set | |||
| 446-S | Square Pan | Galvanized steel 65 x 65 x 7,5 cm | 1 | Pc | |||
| 110-G | Thin Box, | Aluminum 60 gr. capacity | 12 | Pcs | |||
| 151-G | Graduated Cylinder | Plastic 1.000 ml capacity | 1 | Pc | |||
| 153-G | Scoop, | Round type made of cast aluminium | 1 | Pc | |||
| 154-G | Trowel, | Pointed type | 1 | Pc | |||
| 447-S | Straight Edge, | 300 mm length | 1 | Pc | |||
| 155-G | Rubber Mallet, | wooden handle | 1 | Pc | |||
| 150-G | Steel Wire Brush, | wooden handle | 1 | Pc | |||
| Dimension (l x w x h) | : 62 x 62 x 40 cm | ||||||
| Gross Weight | : 120 kg | ||||||
